The bread production line is an automated production system that covers raw material proportioning, dough making, shaping and proofing, baking and cooling. It can achieve standardized and large-scale production according to the needs of different categories such as toast, dinner rolls, Danish bread, etc. The core lies in the precise control of fermentation and baking processes to ensure the taste of bread.
It mainly includes:Vegetable cutter, meat grinder, Filling mixer, Dough mixer, High seed dough press machine, Dumpling machine.

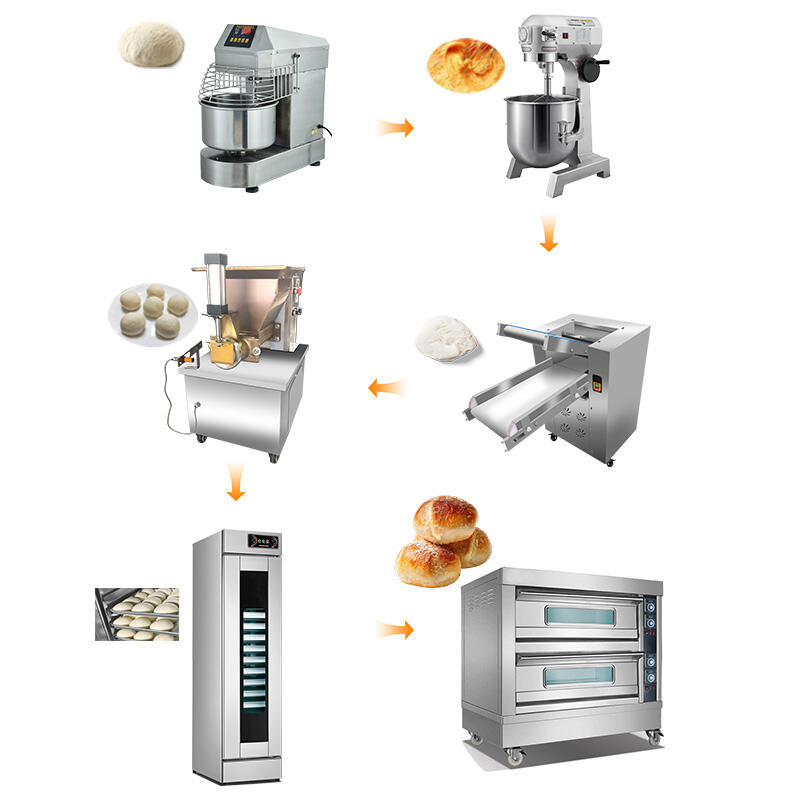

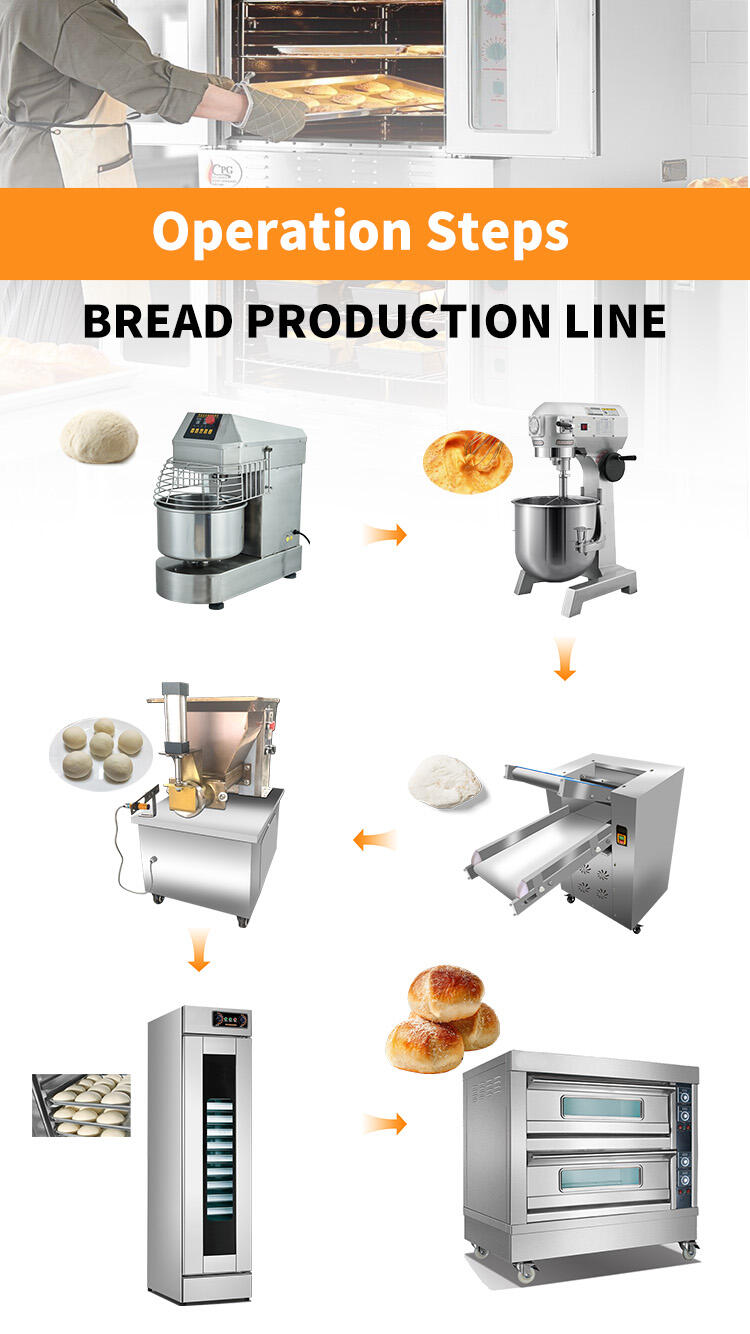

It mainly includes:Dough mixer, egg beater, High seed dough press machine,D ough Divider, Proofing Box,oven.
Our versatile forming machines and hot air ovens enable small-batch, multi-product production, catering to both offline and e-commerce orders.
Parameter table of bread production line parameters
Price $7,500 Concession Price $7350

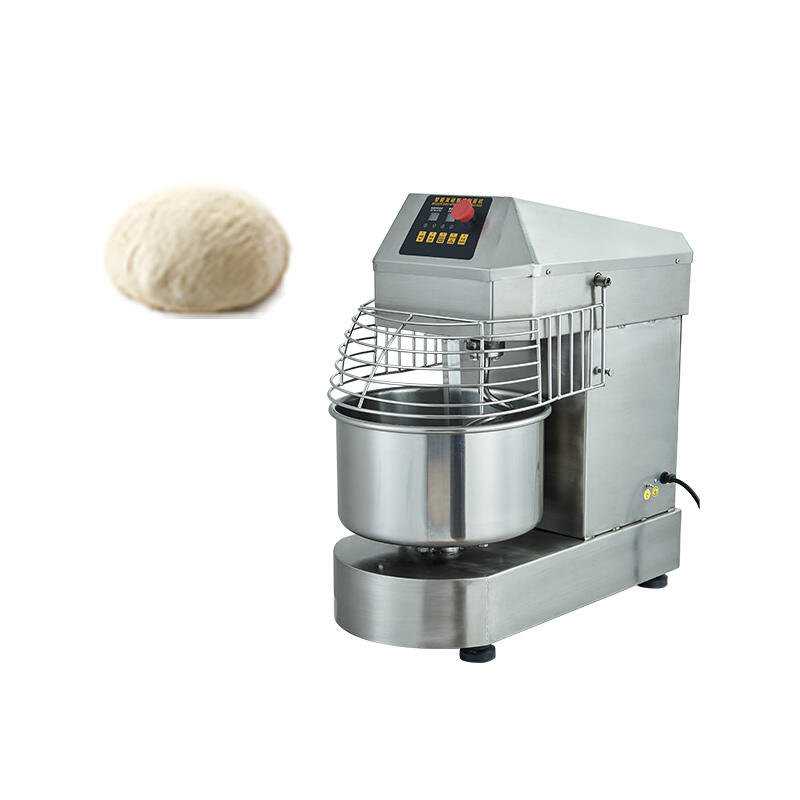

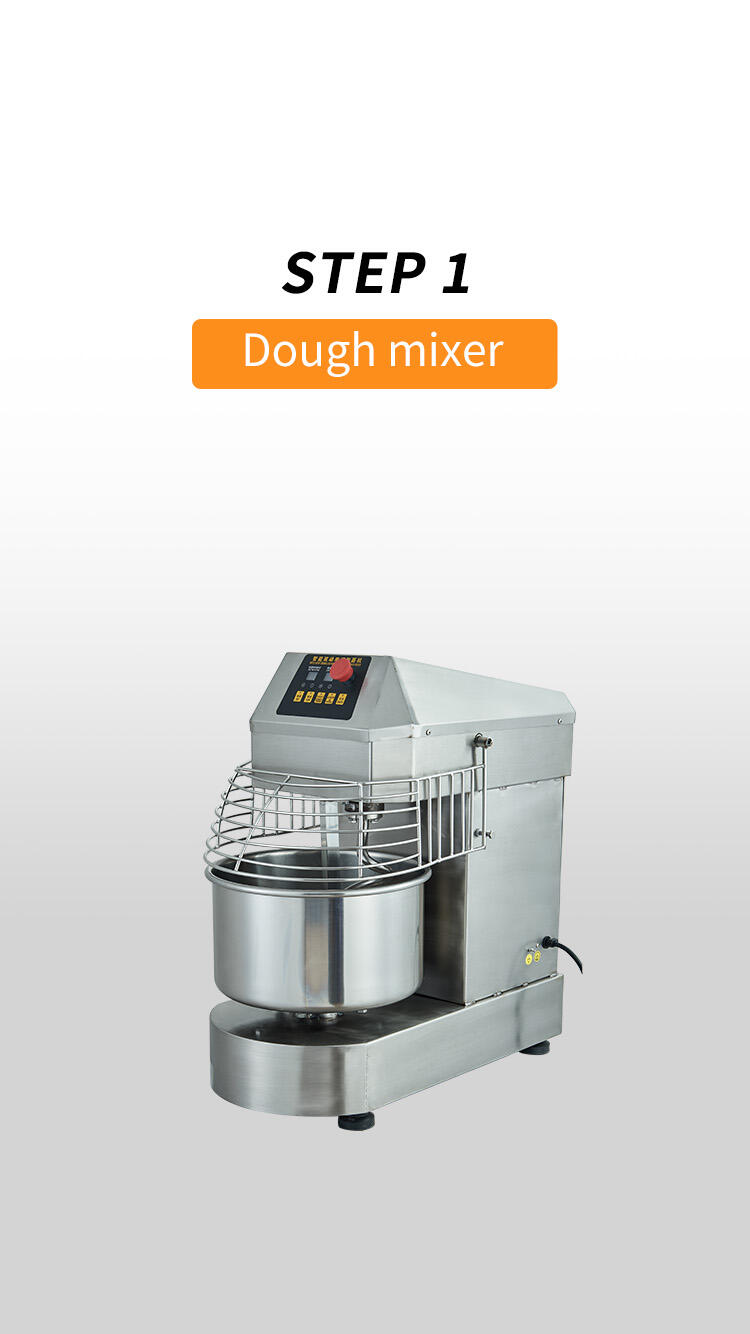

| Dough mixer | Name | Style | Rated voltage | Rated power | Body size/cm | Package size | Noodle bucket size/cm | Weight/kg | And flour amount/kg (flour) | Plug (A) | RMB price | Dollar price |
| MJ-50 | 50 double-acting double-speed dough mixer | 220V/50hz | 3000w | 80*45*140CM | 90*57*150CM | 44*30CM | 150 | 10-20kg | Connect the air switch | 4950 | 710 |

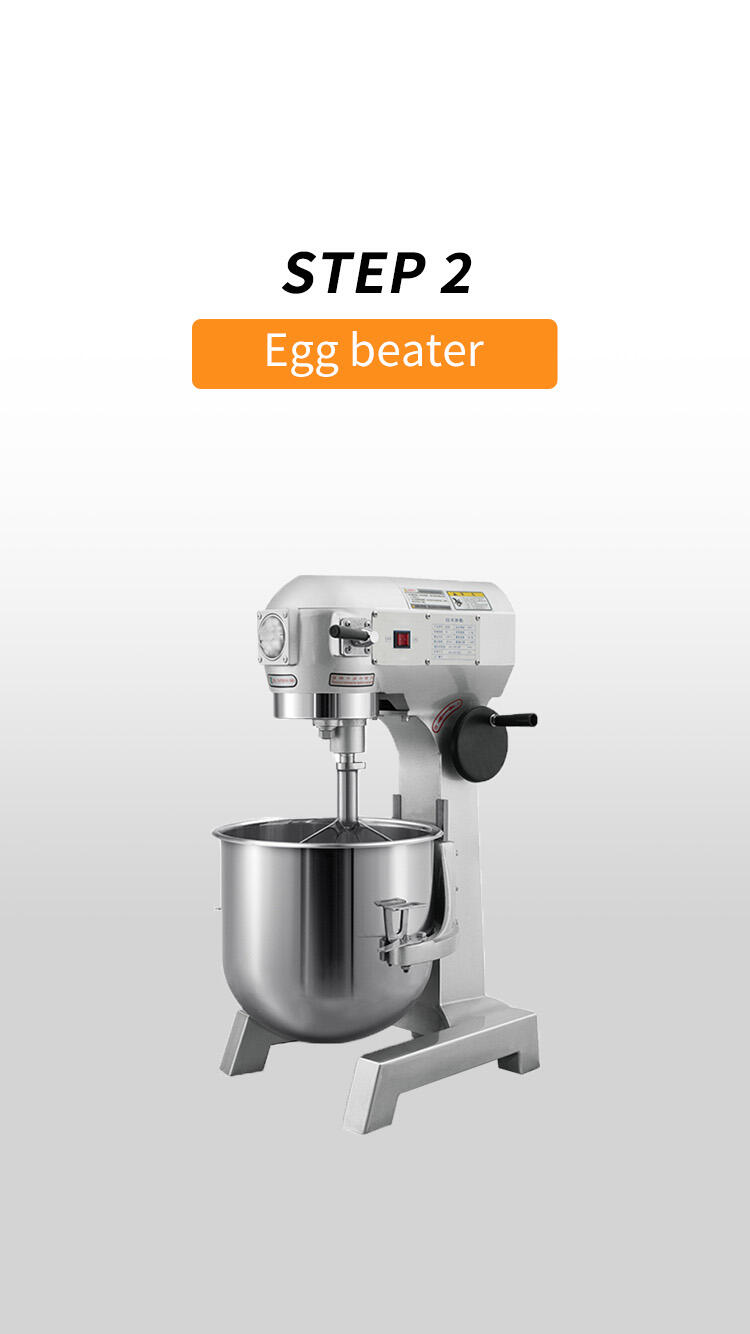

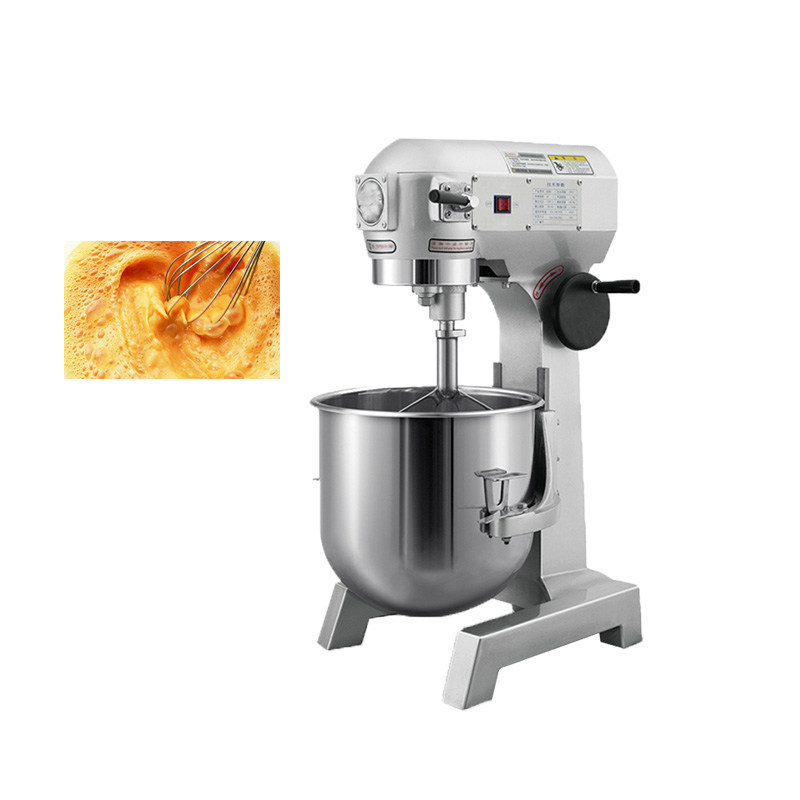

| Egg beater | Model | Product name | Voltage | Power (kw) | Overall dimensions | Package size | Net weight | Gross weight | RMB price | Dollar price |
| MJ-50 | 50L Multifunctional Mixer | 380V/50Hz | 1.8 | 690*622*1200mm | 790*722*1400mm | 230kg | 265kg | 15000 | $2,150 |

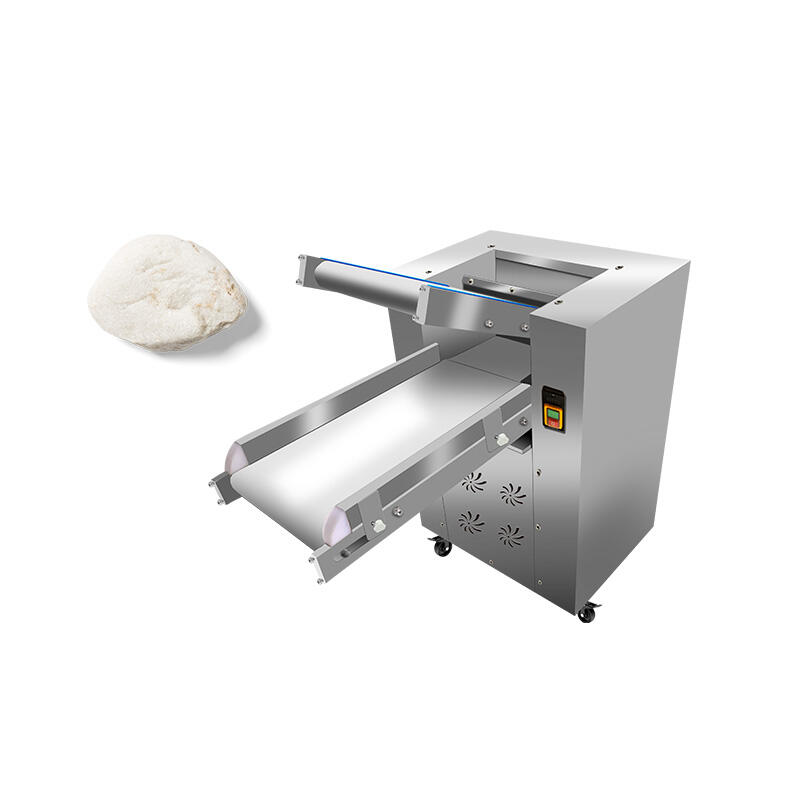

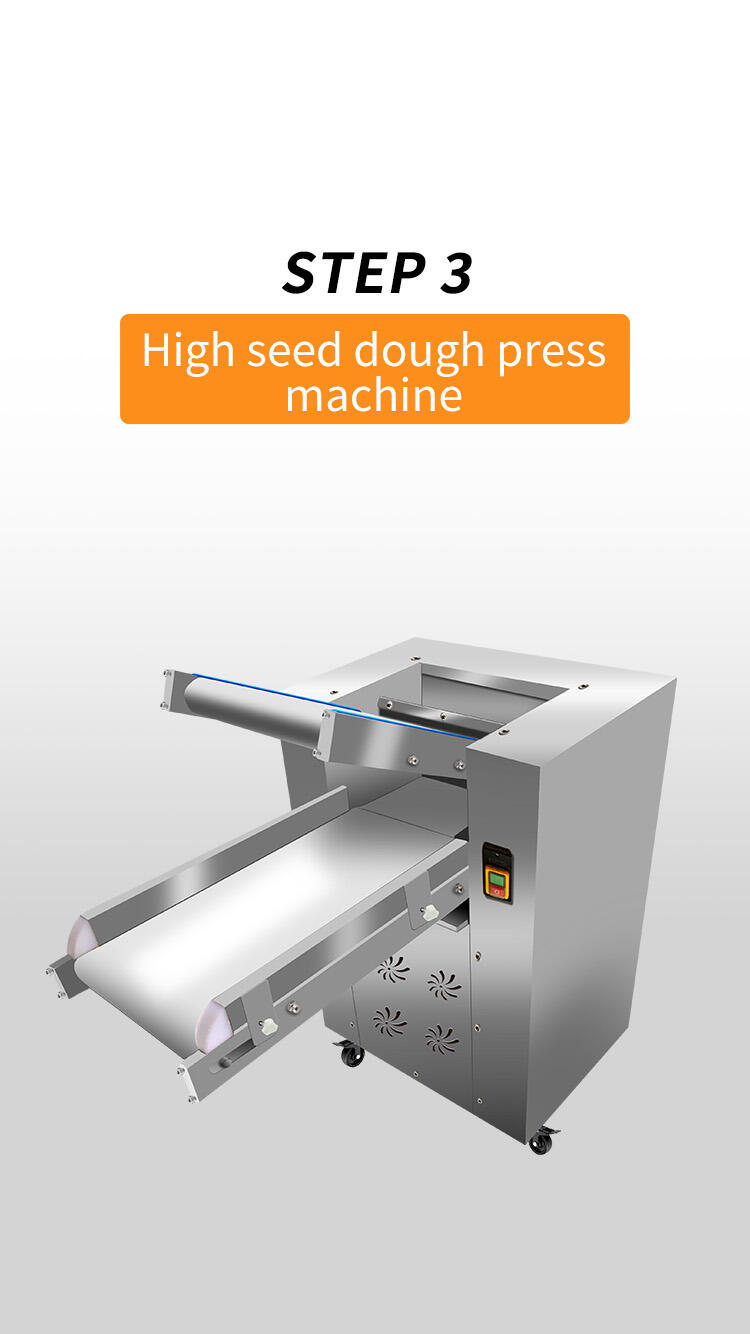

| Noodle press | Model | Power (kw) | Voltage (V) | Conveyor belt | Chain drive | Face roll width (mm) | Kneading thickness (mm) | Face roll diameter (mm) | Package size (mm) | Packing weight (kg) | Price (yuan) | Price (USD) |
| RMJYJ-350 | 3 | 380 | Anti-stick surface PVC | Single chain | 330 | 5-30 | 14 | 1135*750*1265 | 280 | 5250 | $750 |

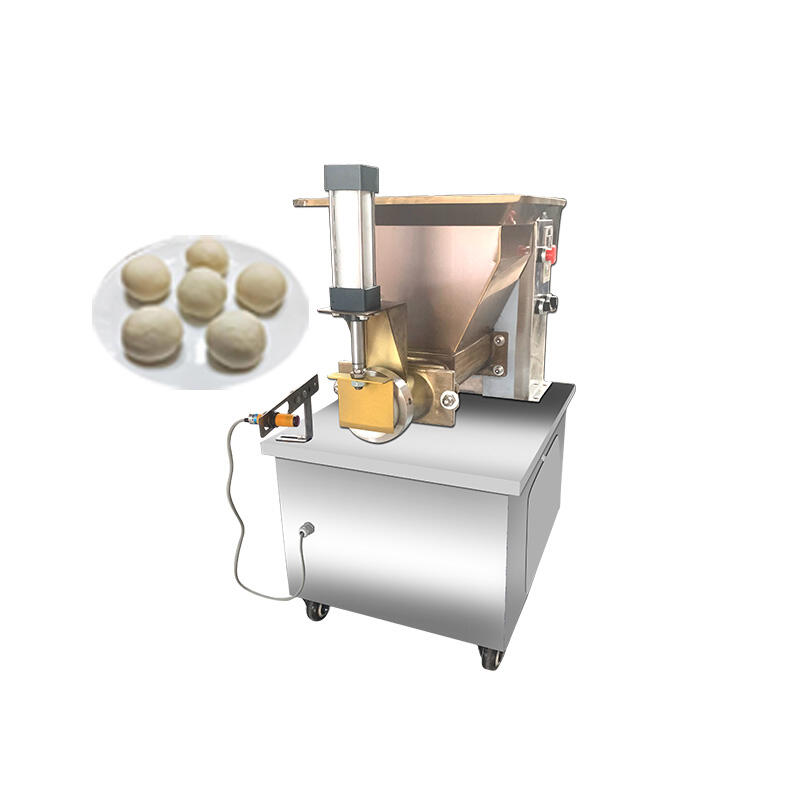

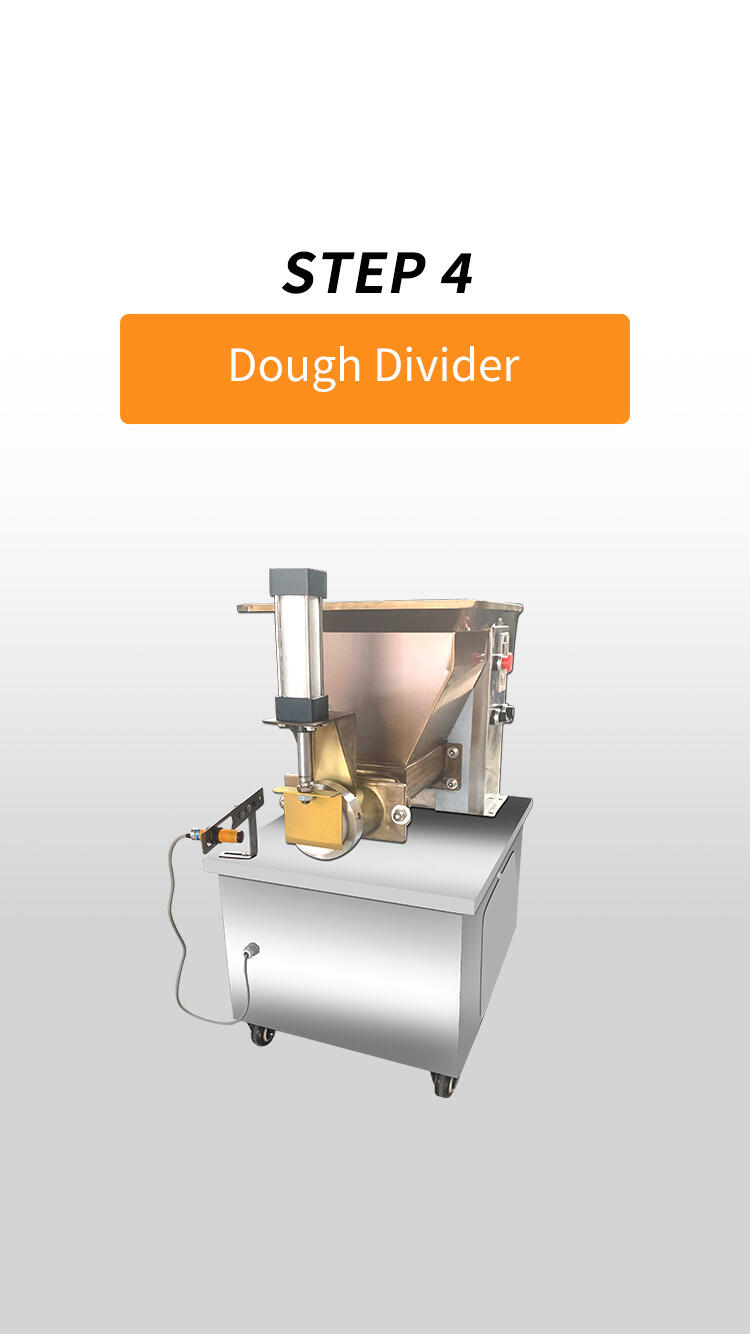

| Dough divider | Model | Voltage (V) | Power (w) | Material | Package size (cm) | Packing weight (kg) | Divided dough (G) | Output (kg/H) | Price (yuan) | Price (USD) |
| QDYJ-30 | 220/110 | 550 | 201stainless steel | 65*55*95 | 60 | 1-350 | 10-100 | 3500 | ￥500 |

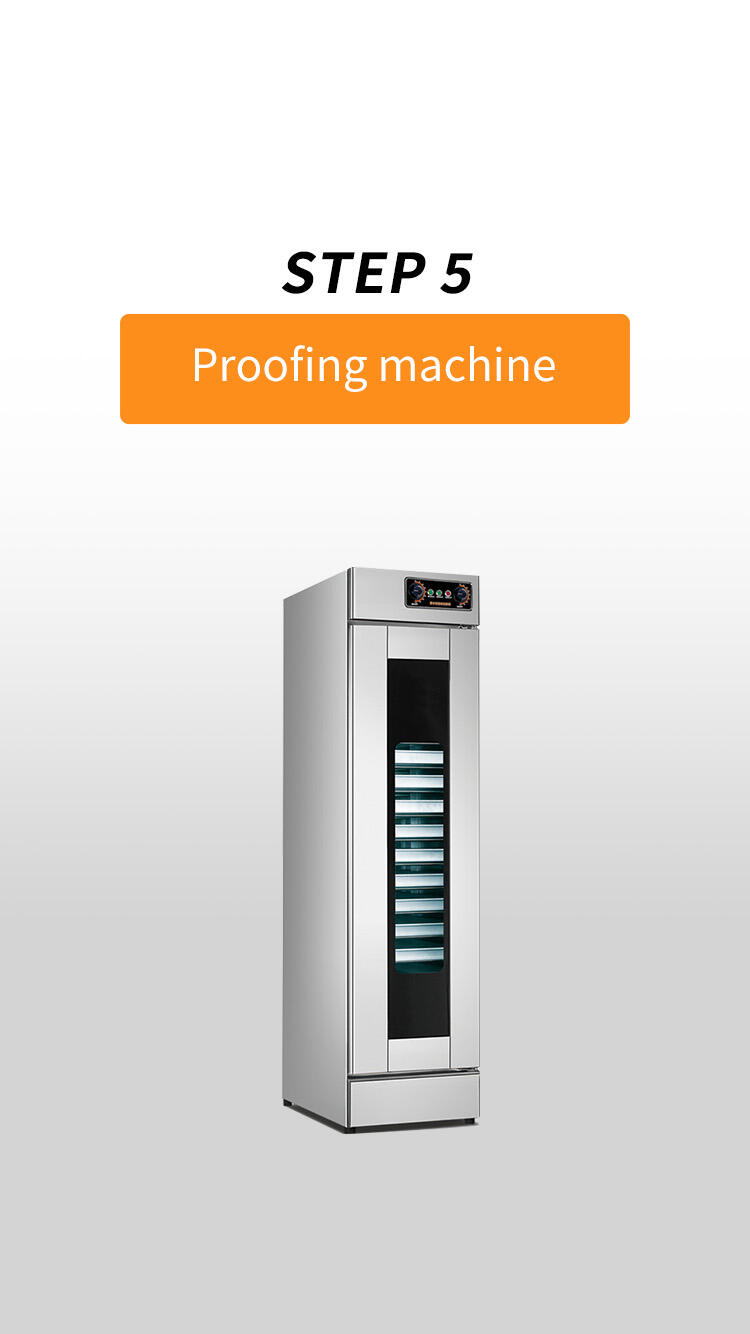

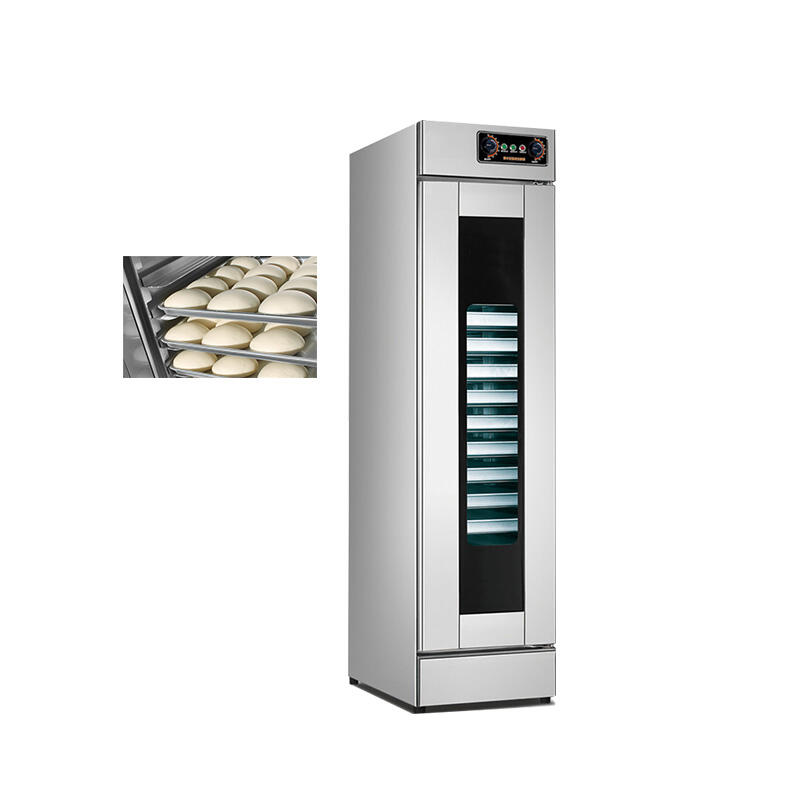

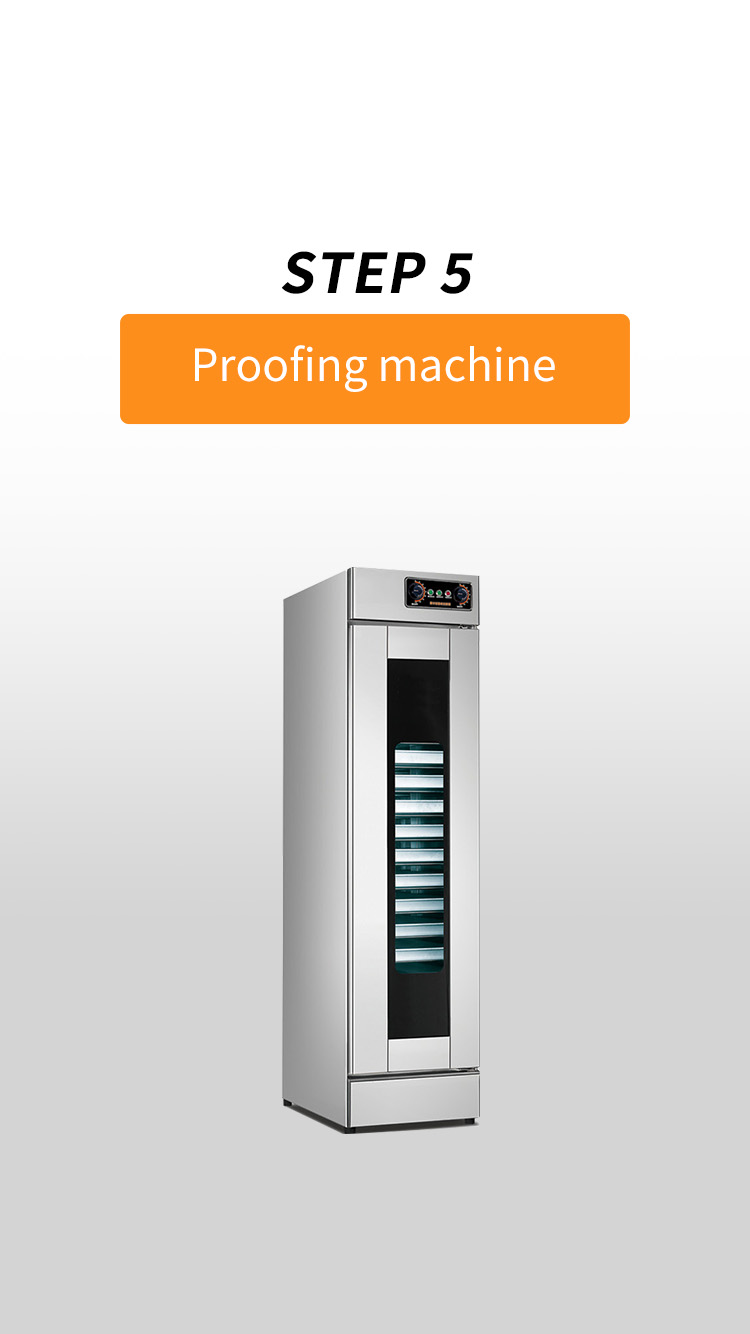

| Proofing box | Model | Product name | Voltage | Power | Temperature control range | Dimensions (L * W * H) | Package size | Net weight | Gross weight | RMB price | Dollar price |
| MJ-QFX16 | 16-disk hot air circulation computer version wake-up box | 220v50hz | 2.6kw | Room temperature -50 ° C | 700*500*1970mm | 800*600*2170mm | 70kg | 80kg | 3000 | 430 |

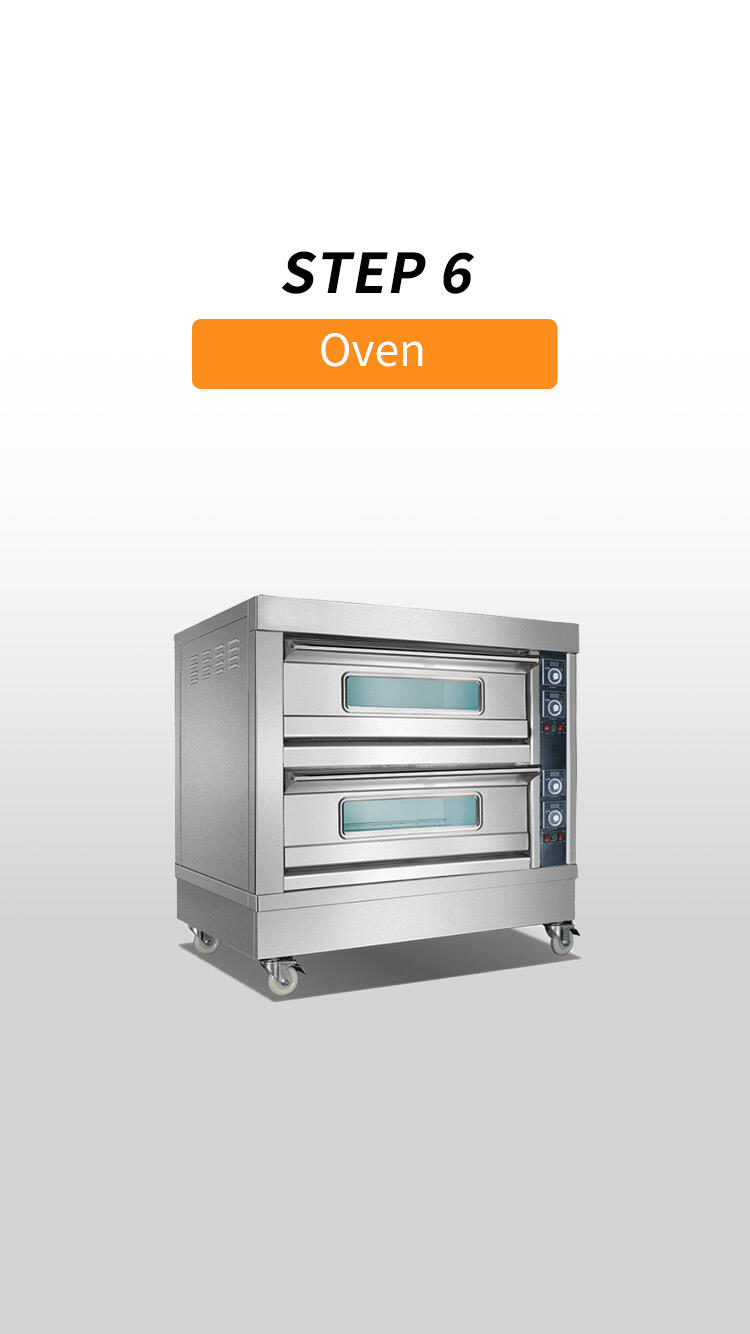

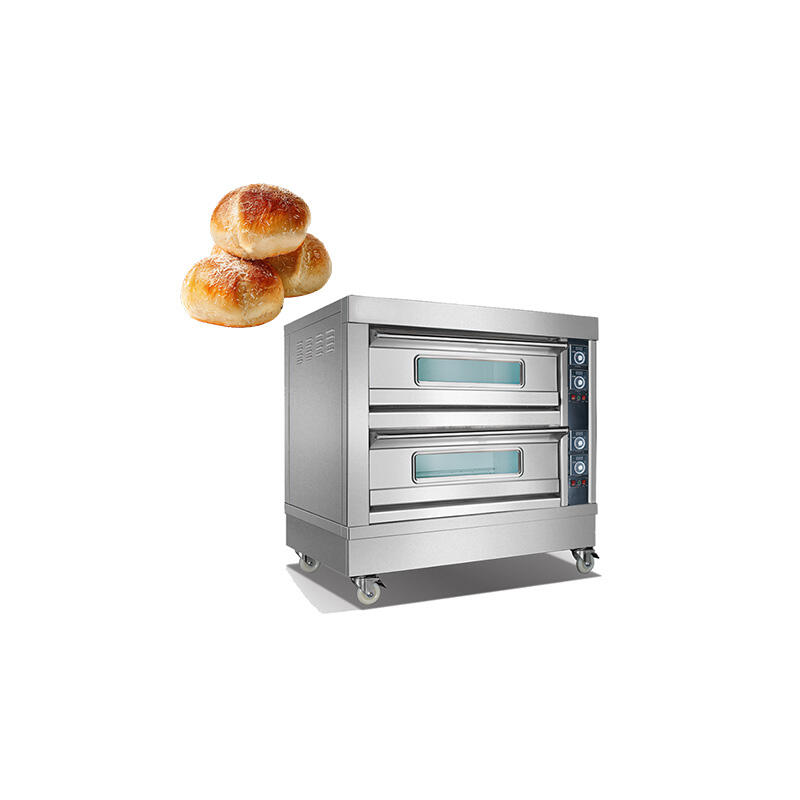

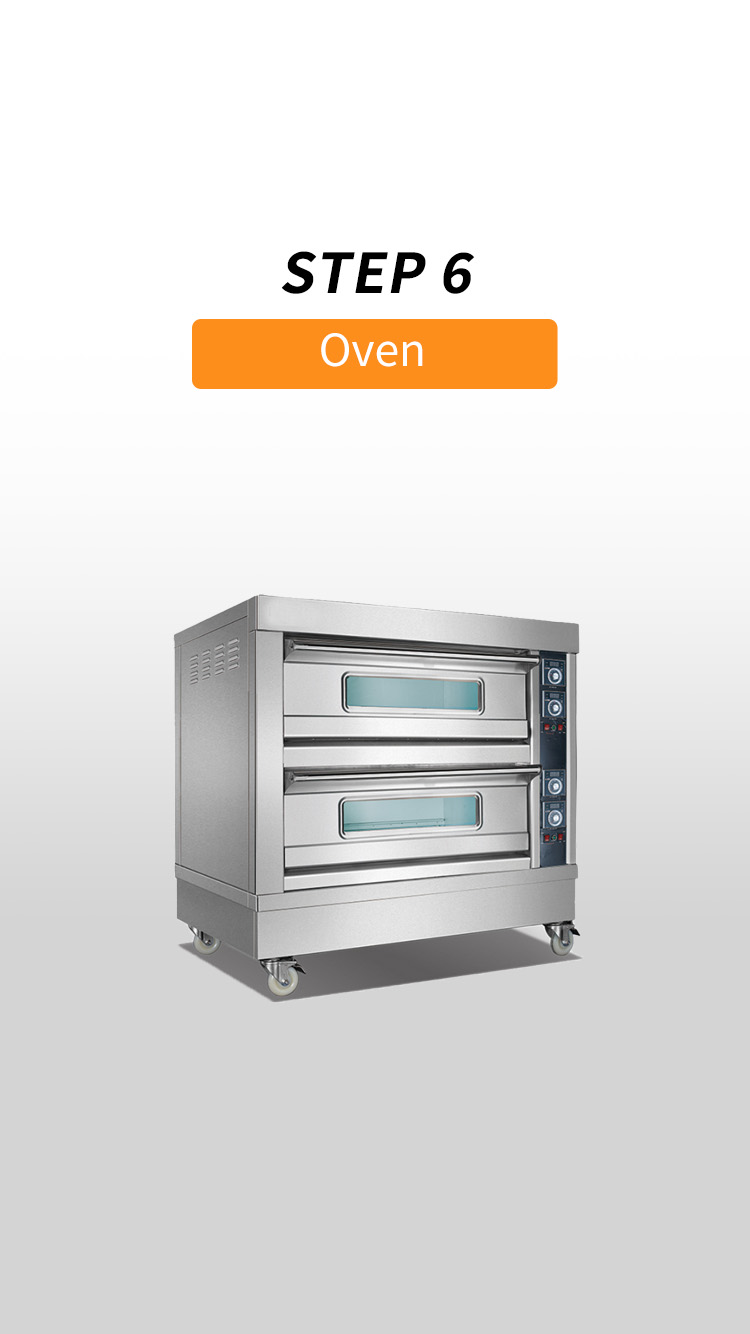

| Oven | Model | Product name | Voltage | Power (Kw) | Temperature control range | Production capacity | Dimensions (L * W * H) | Package size (L * W * H) | Net weight (kg) | RMB price | Dollar price |
| MJ-416D | Four-layer 16-plate electric oven (instrument panel) | 380V/50Hz | 36 | Room temperature -300 ℃ | 100kg/H (take bread as an example) | 1650*1065*1875mm | 1750*1165*2070mm | 320 | 20700 | $2,960 |
Parameter table of bread production line Operation video
