High Precision Flat Ribbon Cable Mix Size 1mm Pitch 19pin Blender For Powder Mixing Horizontal Heating Mixed

Product Presentation

Product Description

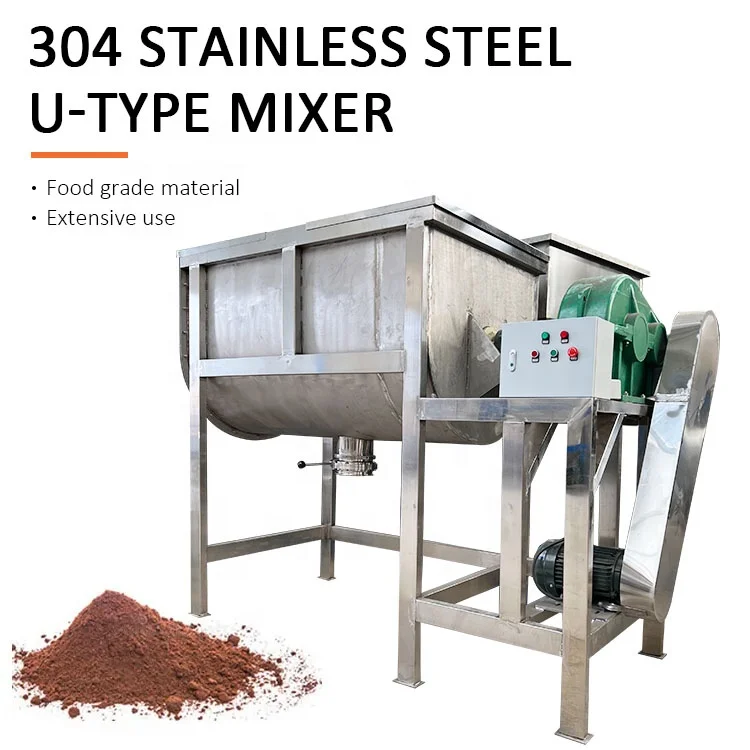

U-shaped ribbon mixer is a common mixing equipment, mainly used to mix dry powder and granular materials. It is widely used in chemical, food, fertilizer and other fields

Send inquiry get a surprise quotation

The two spiral belts rotate in opposite directions and generate a strong force for turning materials at the same time. The inner spiral belt moves the material to both sides, while the outer spiral belt moves the material inward from both sides, so that the material can be quickly and evenly mixed in a short time

U-shaped mixer common motor parameters
Model	UXJBJ-100	UXJBJ-200	UXJBJ-300	UXJBJ-500	UXJBJ-1000	UXJBJ-2000
Available volume liters	170	430	580	880	1600	2700
Working voltage v	220/380	220/380	220/380	380	380	380
Motor power kw	1.5	3	3	5.5	7.5	11.5
Spindle speed rev/min	25	25	24	25	23	22
Weight kg	100	150	200	340	700	1300
Single mixing time minutes	3~5	3~6	4~6	6~9	8~12	10~15
Discharge gate diameter mm	133	133	159	159	219	219
External dimensions mm	1780*559*912	2016*742*1249	2298*846*1424	2563*958*1624	3500*1158*1950	3800*1400*2350
Stainless steel butterfly valve diameter mm	109	114	133	159	219	219

U-shaped mixer silent motor parameters
Model	UXJBJS-100	UXJBJS-200
Available volume liters	170	430
Working voltage v	220/380	220/380
Motor power kw	1.1	1.5
Spindle speed rev/min	25	25
Weight kg	100	150
Single mixing time minutes	3~5	3~6
Discharge gate diameter mm	133	133
External dimensions (length*width*height) mm	1780*559*912	2016*742*1249
Barrel size length*width*height	875*500*525	1150*660*695
Stainless steel butterfly valve diameter mm	109	114

Advantages of U-shaped ribbon mixer:

It has smooth operation, reliable use quality, low working noise, long equipment life, convenient installation and maintenance, wide application range, fast mixing speed and high mixing uniformity. The U-shaped barrel structure of the ribbon mixer allows the material to move with little resistance when being mixed; the forward and reverse rotating ribbons are installed on the same horizontal axis to form a low-power mixing environment, allowing the material to form more fluids during the flow. The vortex speeds up the mixing speed and improves the uniformity of mixing

Send inquiry get a surprise quotation

Structure:

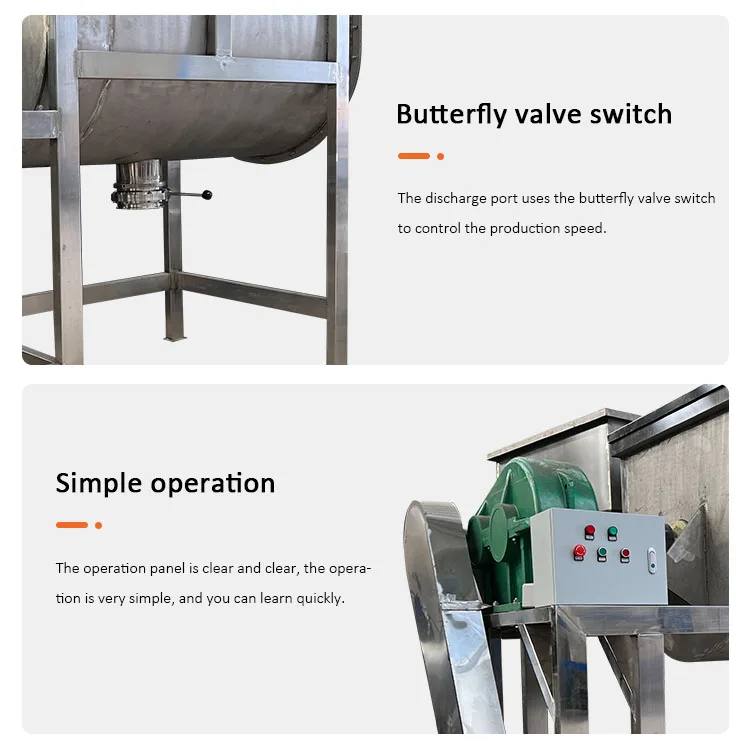

U-shaped ribbon feed mixer is a horizontal, intermittent mixer. Novel rotor structure, no mixing dead spots, excellent mixing uniformity. The bottom is equipped with a large door or a full-length door to reduce material residue; both ends of the fuselage adopt a double-layer design, eliminating the exposure of materials at both ends of the shaft; the discharge door is manual (can also be electric or pneumatic), with more accurate and reliable action, and good sealing performance; the machine is equipped with a grease injection pipe, with a reasonable overall structure, beautiful appearance, and easy operation and maintenance

Product Details

Product Application

Application fields of U-shaped mixer:

Horizontal ribbon mixer is used in food, chemicals, biology, aquaculture, ceramics, refractory materials, plastics, compound fertilizers and other solid-solid (powder and powder) solid-slurry ( powder and glue liquid) Mixing, especially suitable for mixing viscous materials

More Model

Why Choose Us

Send inquiry get a surprise quotation

Zhengzhou Meijin Machinery Equipment Co., Ltd. is located in Zhengzhou City, Henan Province, China. Our company specializes in international export business of food machinery, packing machinery, mixing machinery, spare parts and so on. Team：50+ people；Sales team：30+ people；

Engineer team：8 people；After-sale team：10+ people
Our products sell well worldwide, collaborating with customers from nearly 180+countries, and have a good reputation in the international market, receiving high praise from customers. Meijin Machinery Equipment wholeheartedly provides you with a one-stop purchasing service that makes you feel satisfied. Meijin Machinery Equipment welcomes you at any time

Customer Feedback

              Send inquiry to learn more

The products we sell are well received by buyers

Packing & Shipping

Each of our products has quality assurance, and our prod- ucts and services have been distributed all over the world and have been recognized by customers. Our company adopts wooden box packaging, and the trans- portation mode is sea, land, air and express. We provide professional, environmentally friendly, convenient and effi- cient packaging and services to better ensure that the goods reach you safely

FAQ

What we can do for you:

* Obtain the most competitive prices by actively seeking the best options and managing the supply chain

*Strong R&D team and strict QC system ensure the quality *Large inventory and faster delivery than all competitors. *Our team provides 2-year warranty and best after-sales service support

How we grow together:

*Provide my best solution based on my professional experience *Provide the best support for the product, achieving the perfect balance between performance and cost * Help you grow and win more market share

We believe in value through innovation, we believe in open and honest relationships, and we believe in speed to market.  And DO NOT believe in shortcuts. If you have the same core values, we are happy to be your partner

Send inquiry and cooperate immediately

Question 1.: How can we guarantee quality Answer: Always a pre-production sample before mass production;Always final Inspection before shipment Question 2: What's your Minimum Order Quantity

Answer: Any order quantity is warmly welcomed

Question 3: Can you customize the machine for me

Answer: Yes, we can customize according to customer's requirements

Introducing, the High Precision Flat Ribbon Cable Mix Size 1mm Pitch 19pin Blender from Zhengzhou Meijin - the perfect solution for all your powder mixing needs. If you're looking for a reliable and efficient blender, this product is definitely worth considering.

At the core of this blender is a high precision flat ribbon cable technology that ensures precise and even mixing. With its mix size of 1mm pitch and 19 pins, you can expect superior performance in achieving homogenous mixture with even distribution. Whether you're mixing powders for pharmaceuticals food production or any other industry that requires accurate blending, this blender is sure to deliver quality results.

The horizontal heating mixed capabilities make this blender even more versatile and effective. With its heating feature, this ensures that the powders are mixed efficiently and effectively thus improving your production yield and overall efficiency. No matter what your powder mixing requirement is, this blender has everything you need to get the job done quickly and efficiently.

The design of this is compact and easy to handle. It was built to last with durable materials that guarantee long-term reliability and performance. Whether you're mixing small quantities or large batches of powder, this blender is sure to provide consistent results every time without fail.

The blend capacity of this is impressive and can handle up to 50 liters at a time. It is ideal for industrial-scale powder mixing, making it perfect for use in large factories or smaller businesses looking to scale up their operations. The 19-pin cable technology ensures that your powder will be mixed well and evenly without any spots or clumping.

Invest in this today.
