High Quality u Shape Ribbon Blender Mixing Tank And Storage Of Co2 Food Livestock-food-mixer 7 Horizontal

Product Presentation

Product Description

U-shaped ribbon mixer is a common mixing equipment, mainly used to mix dry powder and granular materials. It is widely used in chemical, food, fertilizer and other fields

Send inquiry get a surprise quotation

The two spiral belts rotate in opposite directions and generate a strong force for turning materials at the same time. The inner spiral belt moves the material to both sides, while the outer spiral belt moves the material inward from both sides, so that the material can be quickly and evenly mixed in a short time

U-shaped mixer common motor parameters
Model	UXJBJ-100	UXJBJ-200	UXJBJ-300	UXJBJ-500	UXJBJ-1000	UXJBJ-2000
Available volume (liters)	170	430	580	880	1600	2700
Working voltage (v)	220/380	220/380	220/380	380	380	380
Motor power (kw)	1.5	3	3	5.5	7.5	11.5
Spindle speed (rev/min)	25	25	24	25	23	22
Weight (kg)	100	150	200	340	700	1300
Single mixing time (minutes)	3~5	3~6	4~6	6~9	8~12	10~15
Discharge gate diameter (mm)	133	133	159	159	219	219
External dimensions (mm)	1780*559*912	2016*742*1249	2298*846*1424	2563*958*1624	3500*1158*1950	3800*1400*2350
Stainless steel butterfly valve diameter (mm)	109	114	133	159	219	219

U-shaped mixer silent motor parameters
Model	UXJBJS-100	UXJBJS-200
Available volume (liters)	170	430
Working voltage (v)	220/380	220/380
Motor power (kw)	1.1	1.5
Spindle speed (rev/min)	25	25
Weight (kg)	100	150
Single mixing time (minutes)	3~5	3~6
Discharge gate diameter (mm)	133	133
External dimensions (length*width*height) (mm)	1780*559*912	2016*742*1249
Barrel size (length*width*height)	875*500*525	1150*660*695
Stainless steel butterfly valve diameter (mm)	109	114

Advantages of U-shaped ribbon mixer:

It has smooth operation, reliable use quality, low working noise, long equipment life, convenient installation and maintenance, wide application range, fast mixing speed and high mixing uniformity. The U-shaped barrel structure of the ribbon mixer allows the material to move with little resistance when being mixed; the forward and reverse rotating ribbons are installed on the same horizontal axis to form a low-power mixing environment, allowing the material to form more fluids during the flow. The vortex speeds up the mixing speed and improves the uniformity of mixing

Send inquiry get a surprise quotation

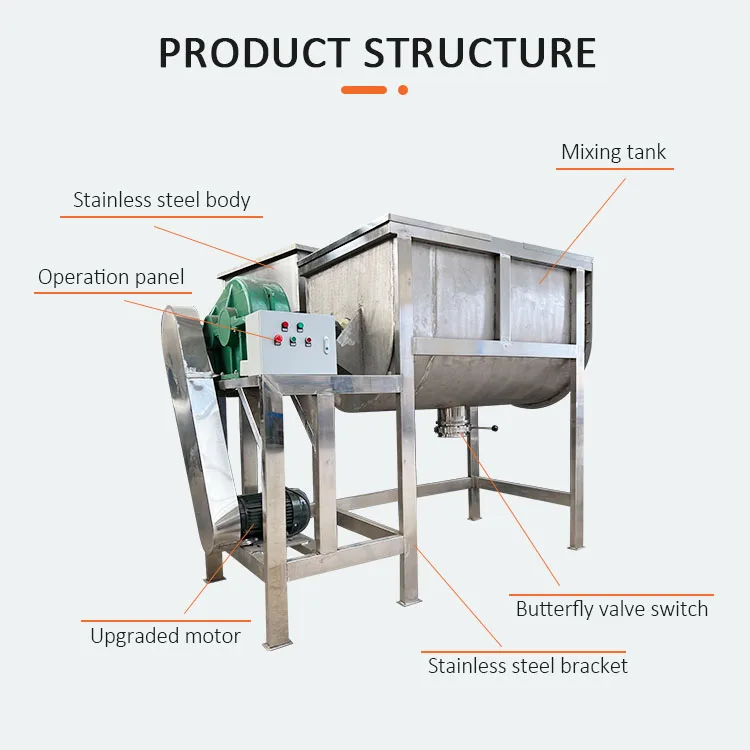

Structure:

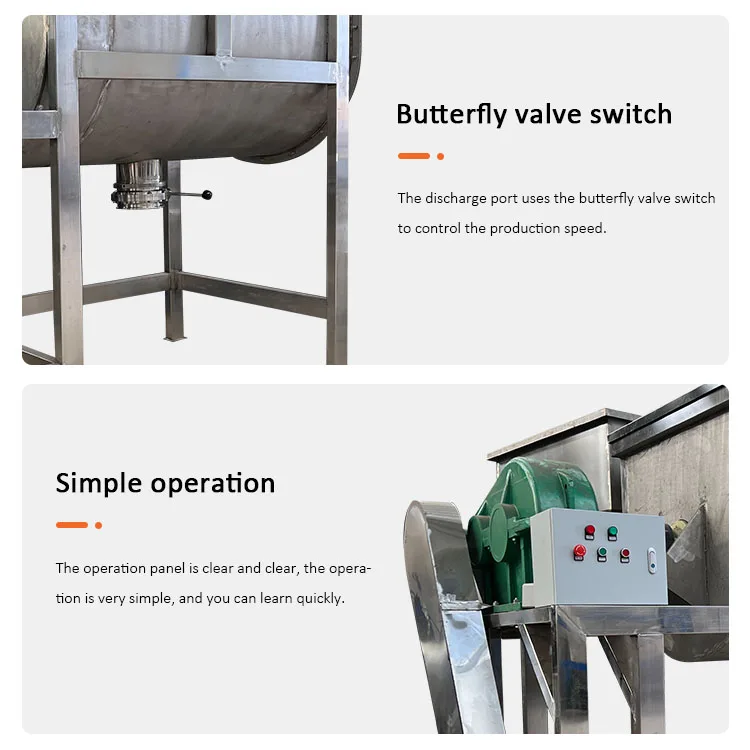

U-shaped ribbon feed mixer is a horizontal, intermittent mixer. Novel rotor structure, no mixing dead spots, excellent mixing uniformity. The bottom is equipped with a large door or a full-length door to reduce material residue; both ends of the fuselage adopt a double-layer design, eliminating the exposure of materials at both ends of the shaft; the discharge door is manual (can also be electric or pneumatic), with more accurate and reliable action, and good sealing performance; the machine is equipped with a grease injection pipe, with a reasonable overall structure, beautiful appearance, and easy operation and maintenance

Product Details

Product Application

Application fields of U-shaped mixer:

Horizontal ribbon mixer is used in food, chemicals, biology, aquaculture, ceramics, refractory materials, plastics, compound fertilizers and other solid-solid (powder and powder) solid-slurry ( powder and glue liquid) Mixing, especially suitable for mixing viscous materials

More Model

Why Choose Us

Send inquiry get a surprise quotation

Zhengzhou Meijin Machinery Equipment Co., Ltd. is located in Zhengzhou City, Henan Province, China. Our company specializes in international export business of food machinery, packing machinery, mixing machinery, spare parts and so on. Team：50+ people；Sales team：30+ people；

Engineer team：8 people；After-sale team：10+ people
Our products sell well worldwide, collaborating with customers from nearly 180+countries, and have a good reputation in the international market, receiving high praise from customers. Meijin Machinery Equipment wholeheartedly provides you with a one-stop purchasing service that makes you feel satisfied. Meijin Machinery Equipment welcomes you at any time

Customer Feedback

              Send inquiry to learn more

The products we sell are well received by buyers

Packing & Shipping

Each of our products has quality assurance, and our prod- ucts and services have been distributed all over the world and have been recognized by customers. Our company adopts wooden box packaging, and the trans- portation mode is sea, land, air and express. We provide professional, environmentally friendly, convenient and effi- cient packaging and services to better ensure that the goods reach you safely

FAQ

What we can do for you:

* Obtain the most competitive prices by actively seeking the best options and managing the supply chain

*Strong R&D team and strict QC system ensure the quality. *Large inventory and faster delivery than all competitors *Our team provides 2-year warranty and best after-sales service support

How we grow together:

*Provide my best solution based on my professional experience *Provide the best support for the product, achieving the perfect balance between performance and cost * Help you grow and win more market share

We believe in value through innovation, we believe in open and honest relationships, and we believe in speed to market.  And DO NOT believe in shortcuts. If you have the same core values, we are happy to be your partner

Send inquiry and cooperate immediately

Question 1.: How can we guarantee quality Answer: Always a pre-production sample before mass production;Always final Inspection before shipment Question 2: What's your Minimum Order Quantity

Answer: Any order quantity is warmly welcomed

Question 3: Can you customize the machine for me

Answer: Yes, we can customize according to customer's requirements

The Zhengzhou Meijin’s High Quality u Shape Ribbon Blender Mixing Tank And Storage Of Co2 Food Livestock-food-mixer 7 Horizontal is an essential product for every food processing company. It was designed to make the blending process more efficient and effective. The u shape design allows for greater mixing while the ribbon blender ensures consistency in mixing regardless of the product density.

One of the most significant advantages of this is its horizontal design. It is an ideal choice for companies that have limited space in their processing facilities. The horizontal design also makes cleaning and maintenance a breeze as all components are easily accessible.

Another key feature of this is its ability to store CO2. This is particularly important for companies that need to store perishable food products as CO2 can help prolong the shelf life of these products by inhibiting bacterial growth. The tank's CO2 storage capacity is also useful for companies in the animal feed industry as it can help prevent mold growth in stored feed.

Made of high-quality materials that are food-grade and corrosion-resistant, this ensures that there is no contamination of the products being mixed. The tank also has an airtight seal, further minimizing the risk of contamination.

This is highly efficient as it uses a combination of horizontal and vertical movement to achieve optimum blending. The u shape design ensures that the product is mixed thoroughly while the ribbon blender's movement breaks up any clumps or agglomerates. The result is a consistent and homogeneous blend every time.

Easy to operate and comes with a user-friendly control panel, this control panel allows operators to regulate the mixing speed and duration, ensuring that the product is mixed to the desired consistency. It is equipped with safety features such as emergency stop buttons and overload protection.
